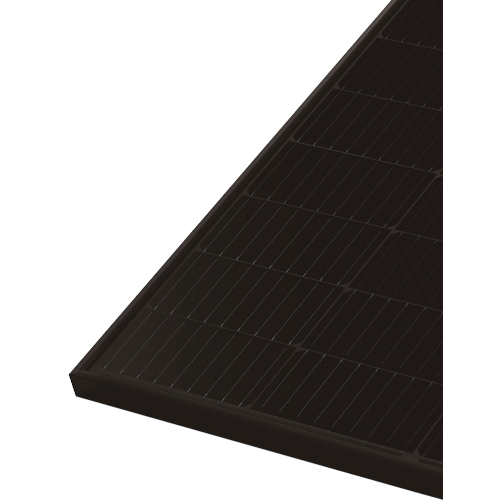

Longi LR4-60HPB Full Specification
Item Solar Panel
Model Longi LR4-60HPB
Cell Type mono PERC
Maximum Power 355W
Maximum Power Voltage 34.6V
Maximum Power Current 10.27A
Short Circuit Current 11.25A
Open Circuit Voltage 40.6V
Maximum System Voltage DC1000V (IEC/UL)
Operating Temperature -40- 85°C
Weight 20.8 Kg
Dimension L x W x D: 1722 x 1134 x 30 mm
- Nominal capacity: 10Wp
- Max Series Fuse Rating: 20A
- Power Tolerance: 0-+5W
- Voc & Isc tolerance: +-3%
- Maximum Series Fuse Rating: 20A
- Protection Class: Class II
- 9-busbar Half-cut cell
- M10 Gallium-doped Wafer
- Integrated Segmented Ribbon
Overview
The Longi LR4-60HPB is a high efficiency solar panel with a maximum capacity of up to 355W. It has a low lid mono PERC with half-cut technology. Its positive power tolerance is 0~+5W guaranteed and high module conversion efficiency is up to 19.5%. It provides superior module technology and is suitable for distributed projects
