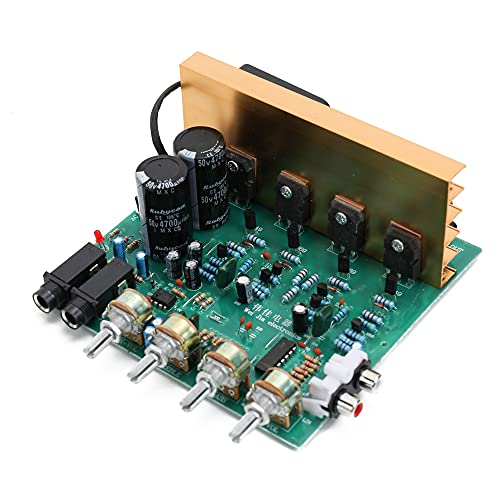

DX-2.1 Large Power Audio Amplifier Board Channel High Power Subwoofer

Product description

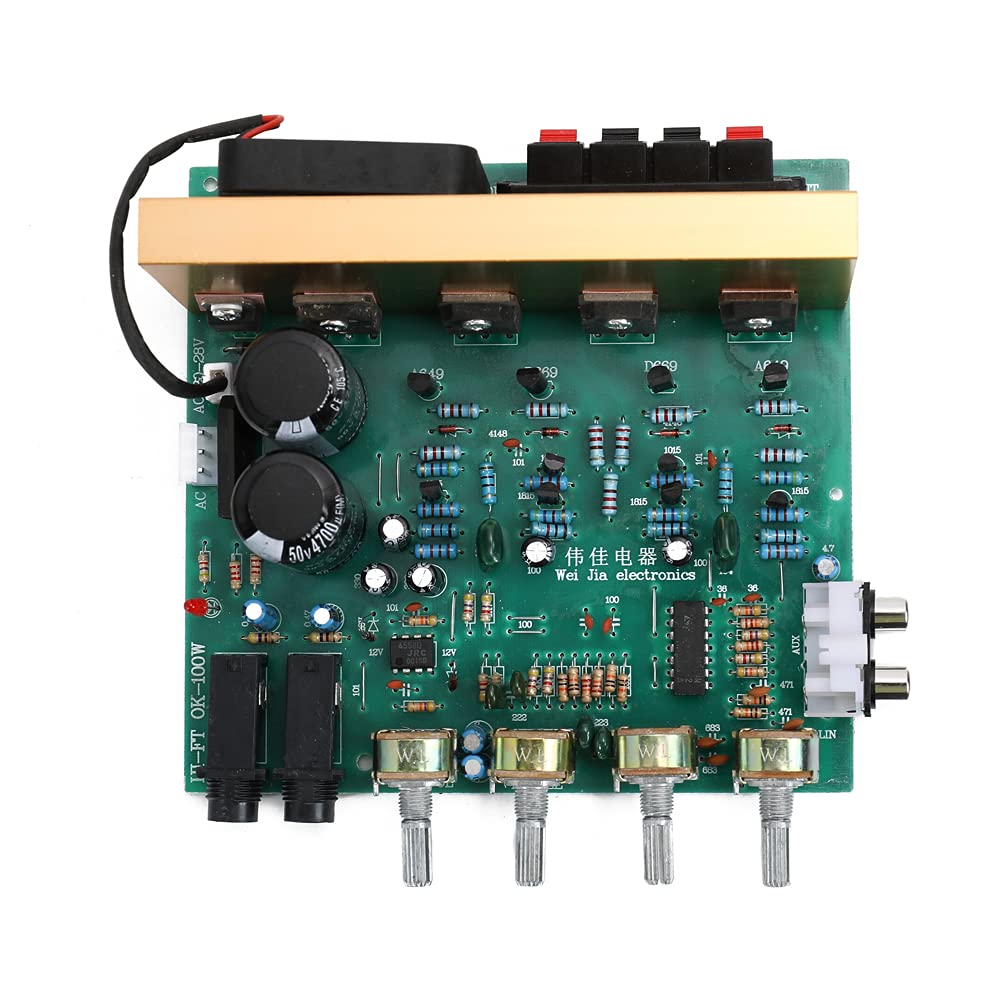

The board uses six disassemble amplifier tubes(used), 4 responsible for

the left and right channels, the other two connected to BTL circuit for subwoofer

 use, wiring is very simple, especially for DIY.

Specifications:

Type: A, B (optional)

Model: DX-2.1-3

Working Voltage: AC18V-24V

Output Power: 3 * 80W

Mega Bass Output: 120W

Right and Left Channel Output: 100W+100W

Frequency Response: 20HZ-30KHz

Distortion Factor: 1%

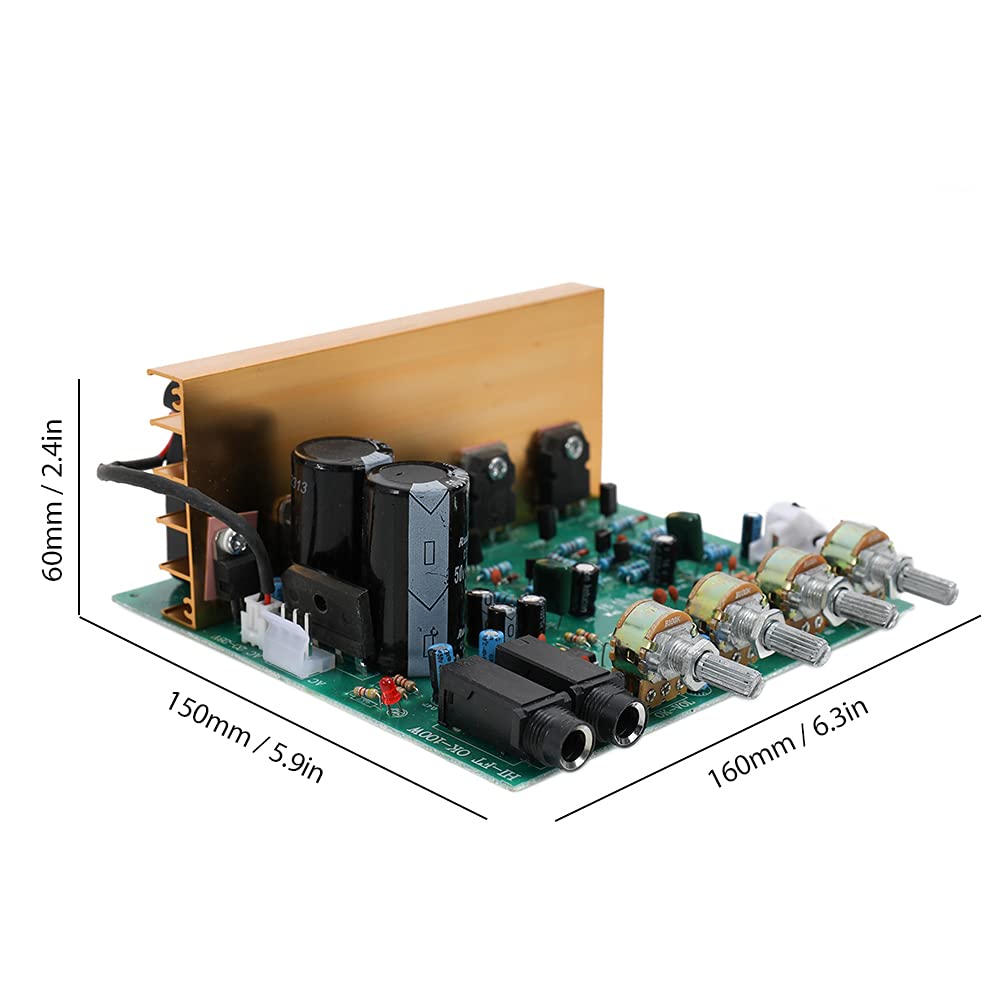

Item Size: 160 * 150 * 60mm / 6.3 * 5.9 * 2.4in

Package Size: 160 * 155 * 65mm / 6.3 * 6.1 * 2.6in

Item Weight: 280g / 9.9ounce

Package Weight: 330g / 11.6ounce

Note:

Please allow 1-3mm error due to manual measurement.

Due to the difference between different monitors, the picture may not reflect the actual

 color of the item.
